For Sale$1,249.00

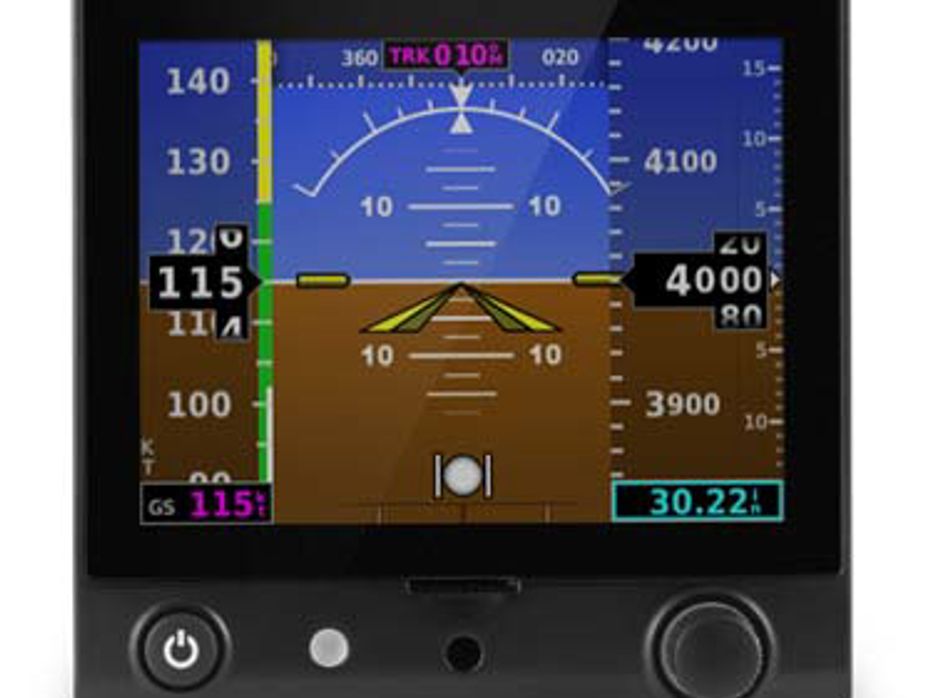

The Garmin G5 features a crisp, sunlight-readable 3.5” LCD display, and it fits into a standard 3-1/8” round cutout, taking up just a fraction of the space and weight previously required by conventional gyro-based instruments. In one glance you'll see attitude, airspeed, altitude, and GPS track.
Posted by Pacific Coast Avionics
Updated 2/2/2022
The Garmin G5 features a crisp, sunlight-readable 3.5” LCD display, and it fits into a standard 3-1/8” round cutout, taking up just a fraction of the space and weight previously required by conventional gyro-based instruments. In one glance you'll see attitude, airspeed, altitude, and GPS track.
The G5 electronic flight display is designed specifically for the experimental amateur-built (EAB) and light sport aircraft (LSA) markets. This affordable G5 electronic flight instrument delivers exceptional performance, reliability and ease of installation as an all-in-one backup or primary “glass cockpit” display. The crisp, sunlight-readable 3.5” LCD fits into a standard 3-1/8” round cutout, taking up just a fraction of the space and weight previously required by conventional gyro-based instruments.
G5 has 2 pilot-selectable main page formats: a PFD page and a DG (directional gyro) or HSI (horizontal situation indicator) page. VHF or GPS navigation inputs are required to drive the HSI display; for GPS interface, an optional GAD™ 29 navigation data adapter is required. By combining visual cues and data readouts once scattered across a myriad of instruments, G5 makes flight information easier to scan — so pilots can respond more quickly and intuitively to any inflight situation.
Rock-solid Attitude Reference
When configured as a primary attitude indicator, G5 uses solid-state AHRS reference to provide smooth, steady and reliable horizon-based pitch and roll indications. In addition to aircraft attitude, G5 will also support display of airspeed, altitude, vertical speed, slip/skid, turn rate, configurable V-speed references, barometric setting and selected altitude — as well as visual alerts upon arriving at a preselected altitude. A built-in GPS receiver and antenna (with an option for external GPS antenna connection) provides highly accurate groundspeed and ground track readouts. Plus, a dedicated rotary knob on the unit allows for easy adjustments to altitude bugs and barometric pressure settings.
Gain a Clearer Sense of Direction
To provide even more situational awareness, the G5 instrument can also function as a DG or HSI in your panel. When paired with an affordable GMU 11 magnetometer and select VHF Nav/Comms or GPS navigators (interfaced with optional GAD 29 navigation data adapter), G5 can serve as your primary reference source for magnetic heading, VOR/LOC guidance and/or GPS course guidance — as well as providing distance and groundspeed indications. The unit displays both vertical and lateral GPS/VOR/LOC course deviation when available (additional equipment may be required). And you can use the G5 instrument’s rotary knob to easily make and adjust course selections — or to control heading bug settings in DG installations. Because the GMU 11 is connected to the CAN bus network, a single magnetometer can supply heading information to 2 G5 units simultaneously.
